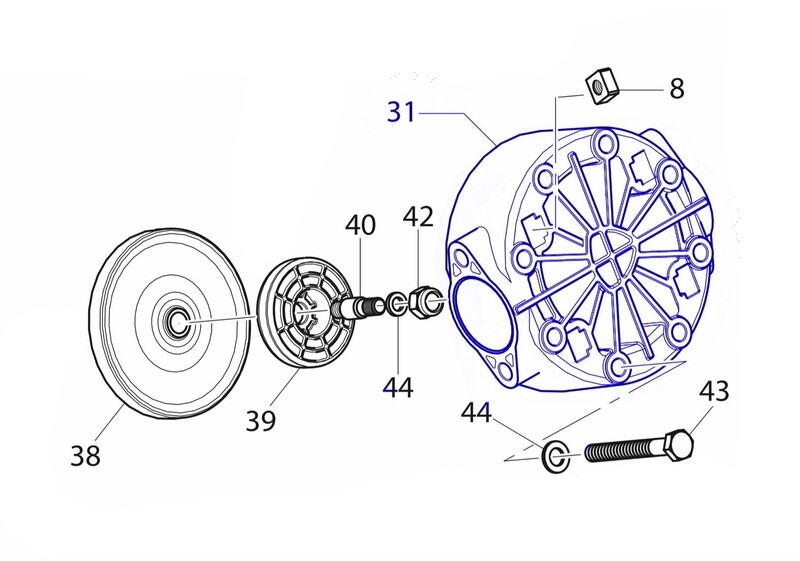

AR45 Pump Parts

AR | [2] O-Ring 022.22x2.62 (Viton) {Manifold}

AR | [3] Manifold

AR | [4] Manifold

AR | [5] Manifold (Outlet)

AR | [7] Manifold (Inlet)

AR| [13] Fork (Bypass)

AR | [8] Nut M8 (SS)

AR | [14] O-Ring 013.95x2.62 (Viton) {Pressure Port}

AR| [20] O-Ring 015.54x2.62 (Viton)

AR| [23] Elbow 018

AR| [22] Body Regulator

AR| [31] Head

AR| [17] Ring Nut Barb 1/2" (Pressure Port)

AR| [36] Piston Ring

AR| [38] Diaphragm D 90 (Viton)

AR| [12] Fitting 3/8" GF (pressure ports)

AR| [40] Hub pin AISI 316L {T220* (a)}

AR| [44] Washer (SS)

AR| [39] Retaining Washer

AR| [46] Sight Glass (Oil Revisor)

AR| [45] O-Ring 22.22x2.62

AR| [48] Oil Reservoir Cap (red)

AR| [50] Plug 3/8" G (T15*)

AR| [19] Pressure Gauge 050

AR| [47] O-Ring 53.65x2.62

AR| [42] Nut M8 AISI 304 (T180*)

AR| [16] Valve 3/8" G - 1/2" GM-M DX (Pressure Port)

AR | [10] Gasket - Green Viton
